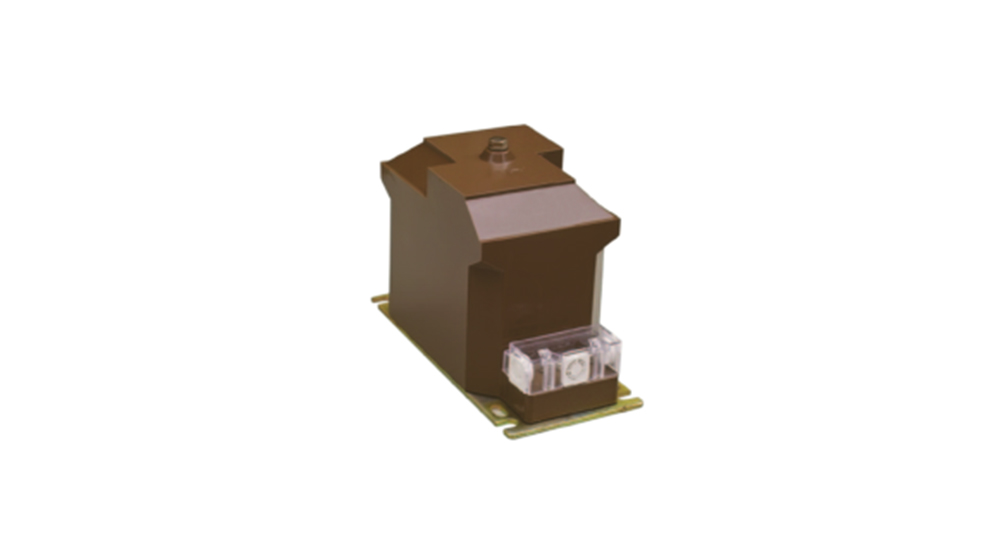

This transformer is a fully enclosed epoxy resin cast insulation structure voltage transformer, suitable for AC power systems with rated frequencies of 50 or 60Hz and rated voltages up to 3, 6, 10kV and below. It is used for voltage measurement, energy metering, and relay protection. The product features compact size, lightweight design, and offers multiple installation dimensions and methods.
Parameter Table
Rated voltage ratio (kV) | Rated Output (VA) | Limiting Output (VA) | Rated Insulation Level (kV) | ||
0.2 | 0.5 | 6P | |||
3/√3:0.1/√3:0.1/3 | 15 | 30 | 50 | 200 | 3.6/25/40 |
6/√3:0.1/√3:0.1/3 | 20 | 50 | 50 | 200 | 7.2/32/60 |
10/√3:0.1/√3:0.1/3 | 20 | 50 | 50 | 200 | 12/42/75 |

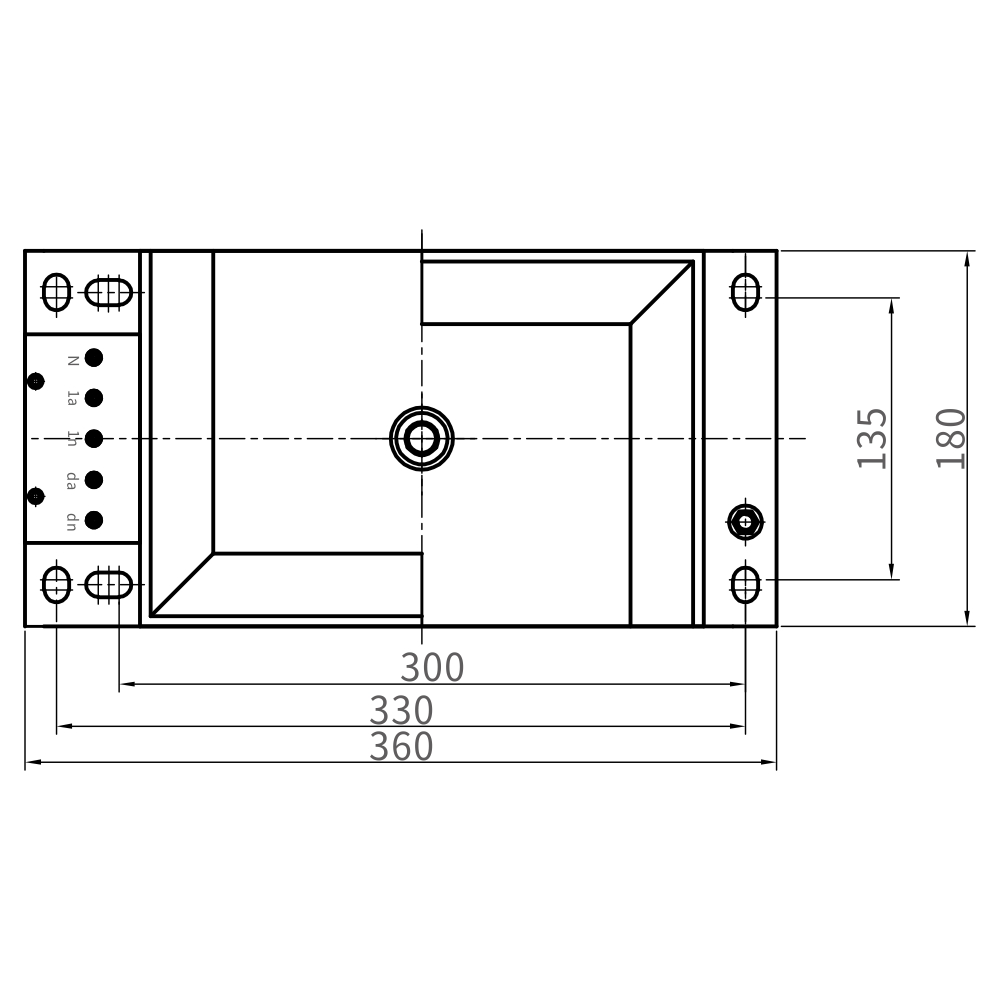

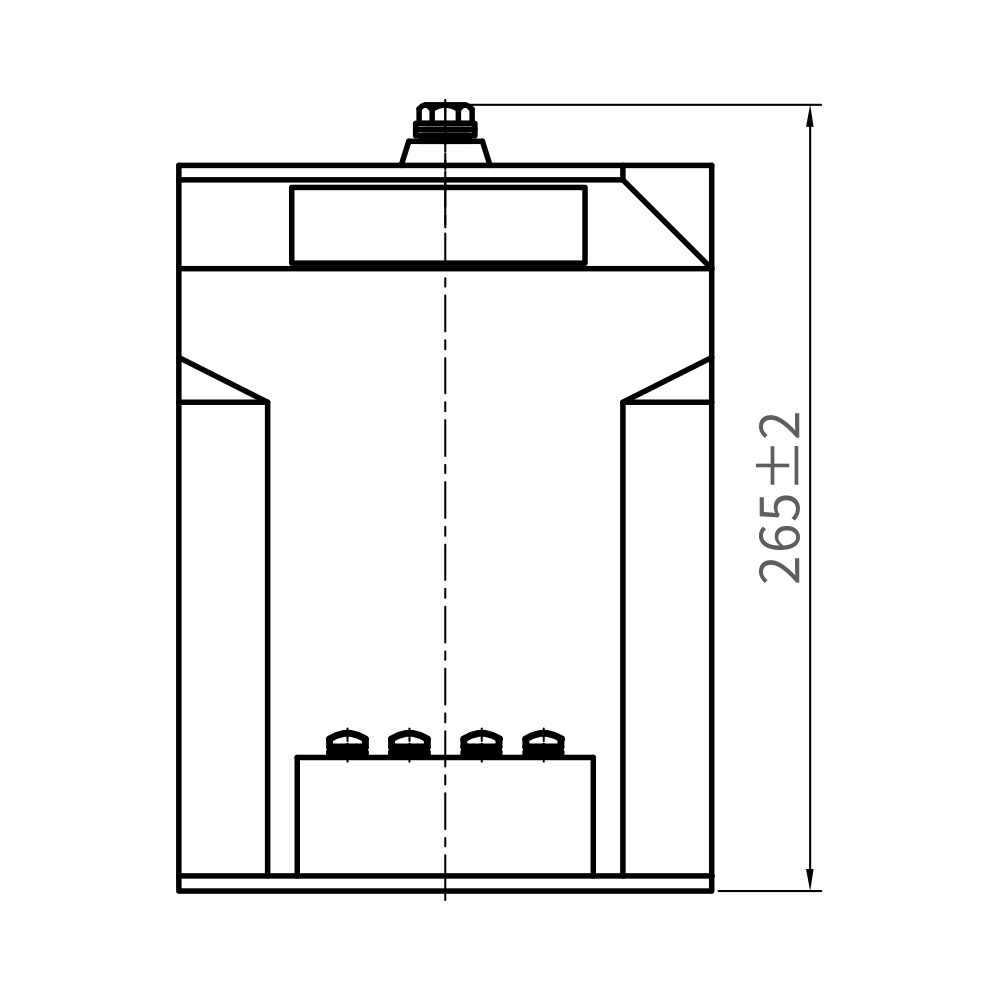

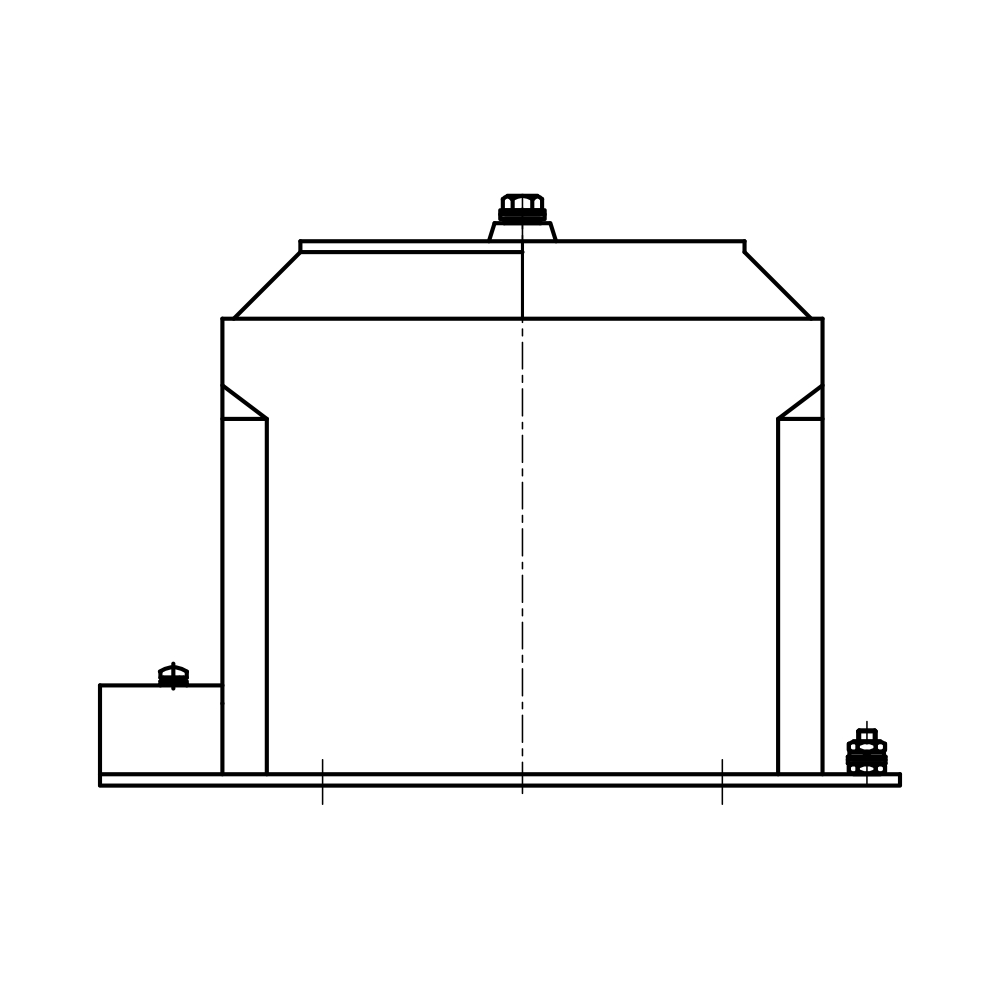

Outline Dimension Drawing
