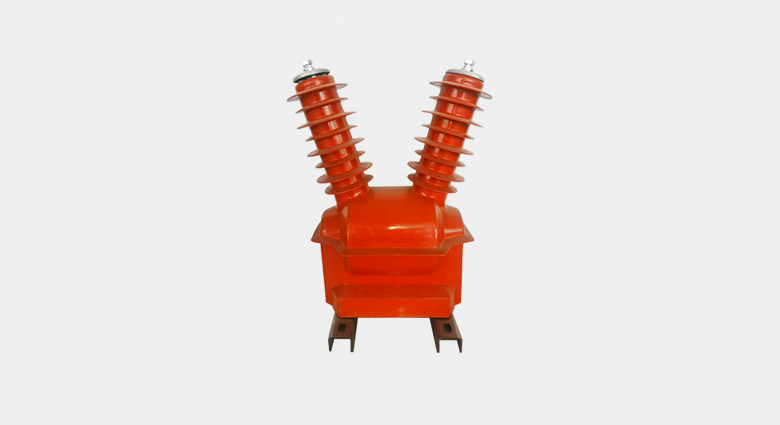

This series of transformers are pillar-type structures, fully enclosed and cast with epoxy resin, and covered with silicone rubber insulation. They are suitable for outdoor use, UV-resistant, pollution-resistant and moisture-resistant, and are also suitable for use in tropical areas. The transformers do not require special maintenance, and only surface dirt needs to be removed regularly. Since the transformers are fully enclosed and cast with epoxy resin, they are small in size, light in weight, and suitable for installation in any position and direction.

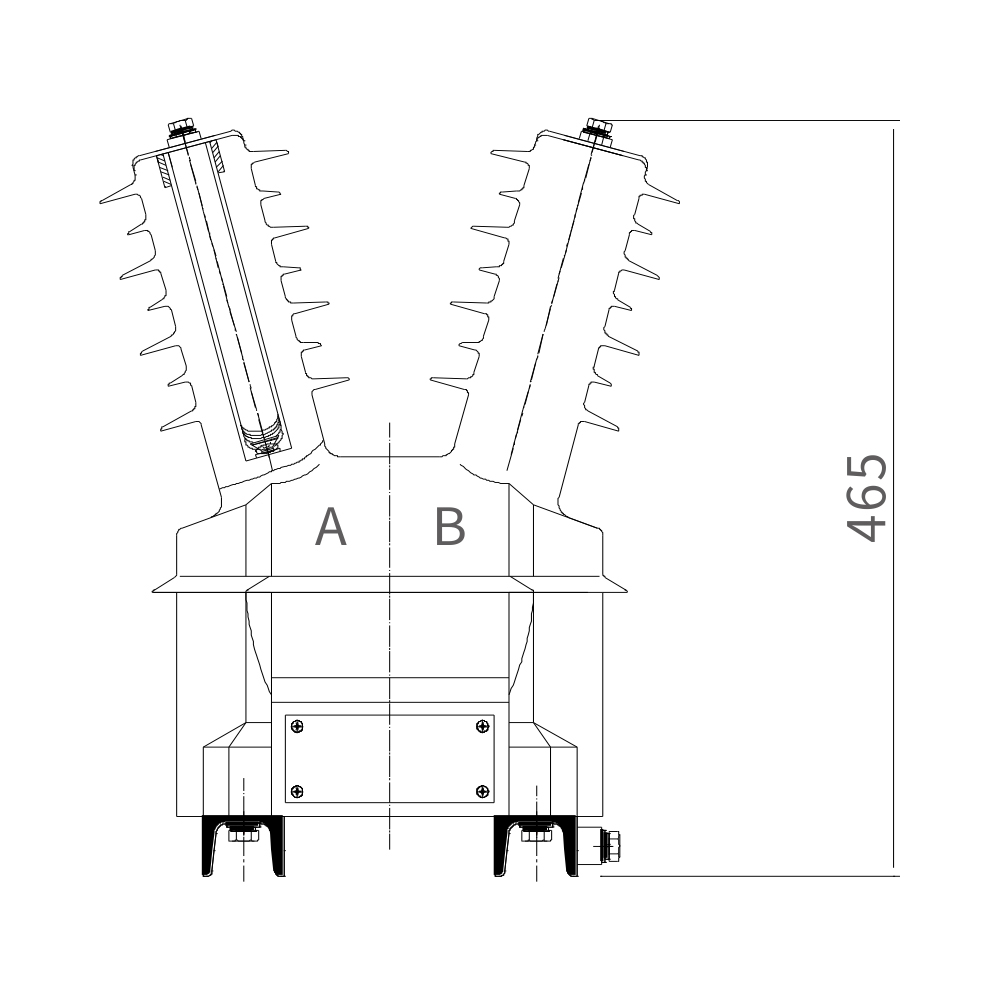

Outline Dimension Drawing
