This series of transformers features a post-type structure, utilizing fully enclosed epoxy resin casting with external silicone rubber insulation. It is suitable for outdoor environments, offering UV resistance, pollution resistance, and moisture resistance, and is also applicable for use in tropical regions. The transformer requires no special maintenance, only regular removal of surface contaminants. Due to its fully enclosed epoxy resin casting, it has a compact size and lightweight design, enabling installation in any position or orientation. This transformer is a high-performance, low-impedance composite insulated voltage transformer that meets Fang Grid's requirements for 10kV outdoor pole-mounted switches, delivering a rated capacity of 1000VA and high-performance parameters with voltage impedance <15% at 3000VA.

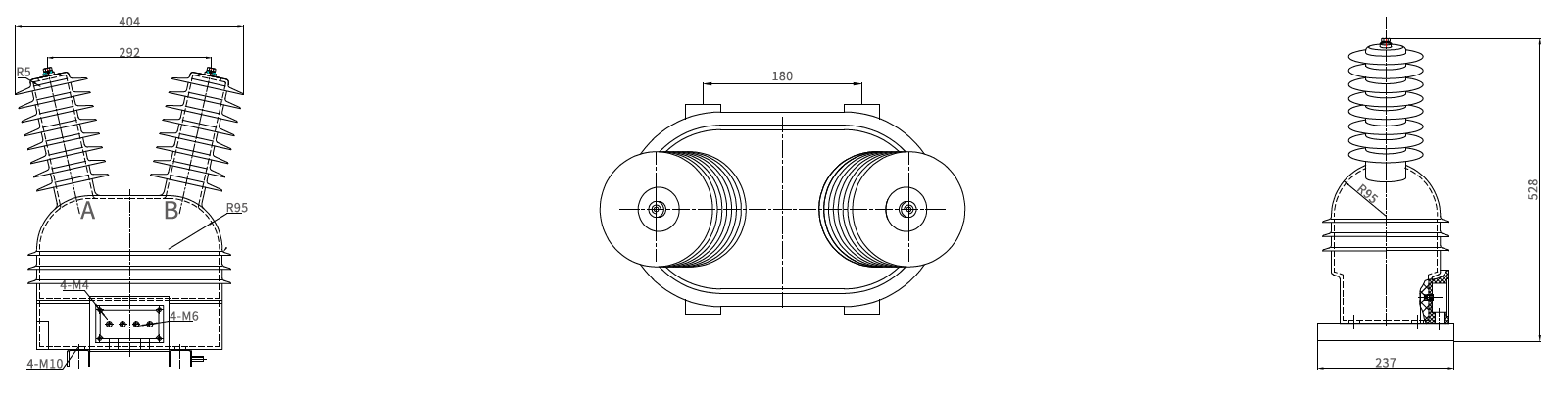

Outline Dimension Drawing
